Detect fine surface and near-surface cracks in ferromagnetic welds, forgings, castings and components, quickly, reliably and without damaging the part.

Inspection Snapshot

Reliable crack detection at the surface

Weld Examination

Visible and fluorescent MPI methods

Crack Detection

Surface and near-surface discontinuities

Ferromagnetic Components

Steel welds, forgings, castings and machinery parts

Discuss your inspection

Certified Personnel

Qualified NDT professionals

Fast Turnaround

Responsive scheduling

Modern Equipment

Calibrated UT instruments

Detailed Reports

Clear inspection findings

Highly Sensitive

Reveal fine cracks while keeping the component fully usable.

What is magnetic particle testing?

Make fine cracks clearly visible

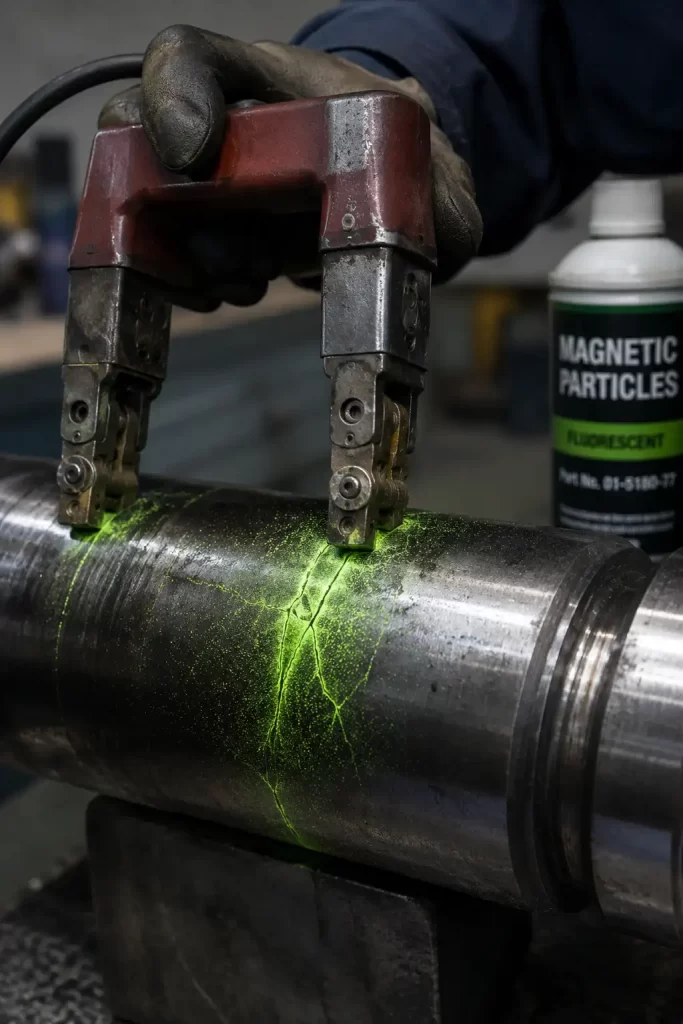

Magnetic Particle Testing (MT), also called Magnetic Particle Inspection (MPI), is a non-destructive method used to detect surface and slightly subsurface discontinuities in ferromagnetic materials.

The component is magnetized and fine magnetic particles are applied to the inspection area. Cracks and other discontinuities interrupt the magnetic field, producing leakage fields that attract the particles and form visible indications for evaluation by a qualified inspector.

Weld inspection

Surface cracks

Near-surface flaws

Fatigue cracking

Forgings & castings

Quality verification
